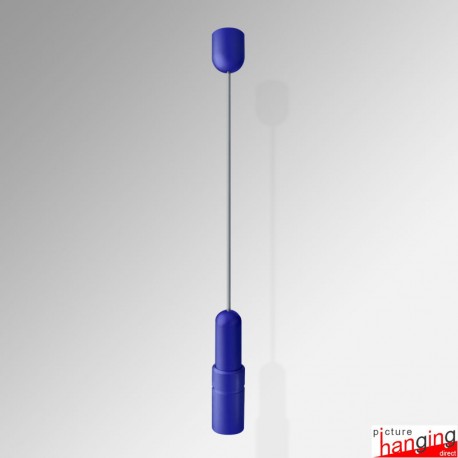

Ceiling to Floor Blue Cable Fitting, 4m Length

Ceiling to Floor Blue Cable Fitting is easy to install, with direct screw fixing - this is the most common display system used worldwide by Estate Agents and Commercial Window Displays! These systems are also effective in office space & retail shop floors!

Ceiling to Floor Blue Cable Fitting - Installation

1. Unscrew the ceiling fixture into (2) pieces (1 'Brass Mount' and 1 'Blue Cap with Cable'.
2. Install the 'Brass Mount' to the ceiling.
3. Now screw the polished 'Blue Cap with Cable' back onto the Brass Mount.
4. Unscrew the floor fixture into (2) pieces (1 'Floor Mount' and 1 'Blue Floor Cap' with Spring & Cable'.
5. With the cable hanging, cut the length required (or a close approximation).
6. Now thread the cable back through the Tension 'Spring' and reattach the Brass Cylinder to the end - to prevent the cable from pulling out from the 'Spring' and 'Blue Floor Cap'.
7. With the cable hanging straight, you can mark and install the 'Floor Mount' to the floor in the correct position.
8. Re-screw the 'Blue Floor Cap' with the cable attached to the 'Floor Mount'.
9. The cable MUST be taut before the 'Blue Floor Cap' has been screwed down onto the 'Floor Mount' for the 'Spring' to maintain cable tension!

Note: Fittings can also be supplied with "Transparent" Perlon Cord! (On request)
